Model H25 High Flow reg, Stainless Dia, Side Inlet, 0-1500kpa, Hard Hats. Type 10.5. ½” NPT Female Body Port, (if required 1/2" BSPP Male RH outlet Nipple is code H2557 to be ordered separately).

Skip to the beginning of the images gallery

Model H25 High Flow reg, Stainless dia, Side Inlet, 0-1500kpa, Hard Hats. Type 20. ½” NPT Female Body Port, (if required 1/2" BSPP Male RH outlet Nipple is code H2557BL Left Hand to be ordered separately).

Model H25 High Flow reg, Neoprene Diaphragm (for very high flows), Side Inlet, 0-1500kpa, Hard Hats. Type 10.5. 5/8" UNF RH Outlet (& 1/2" BSPP Male RH outlet supplied loose). Snap safe inlet!

Harris

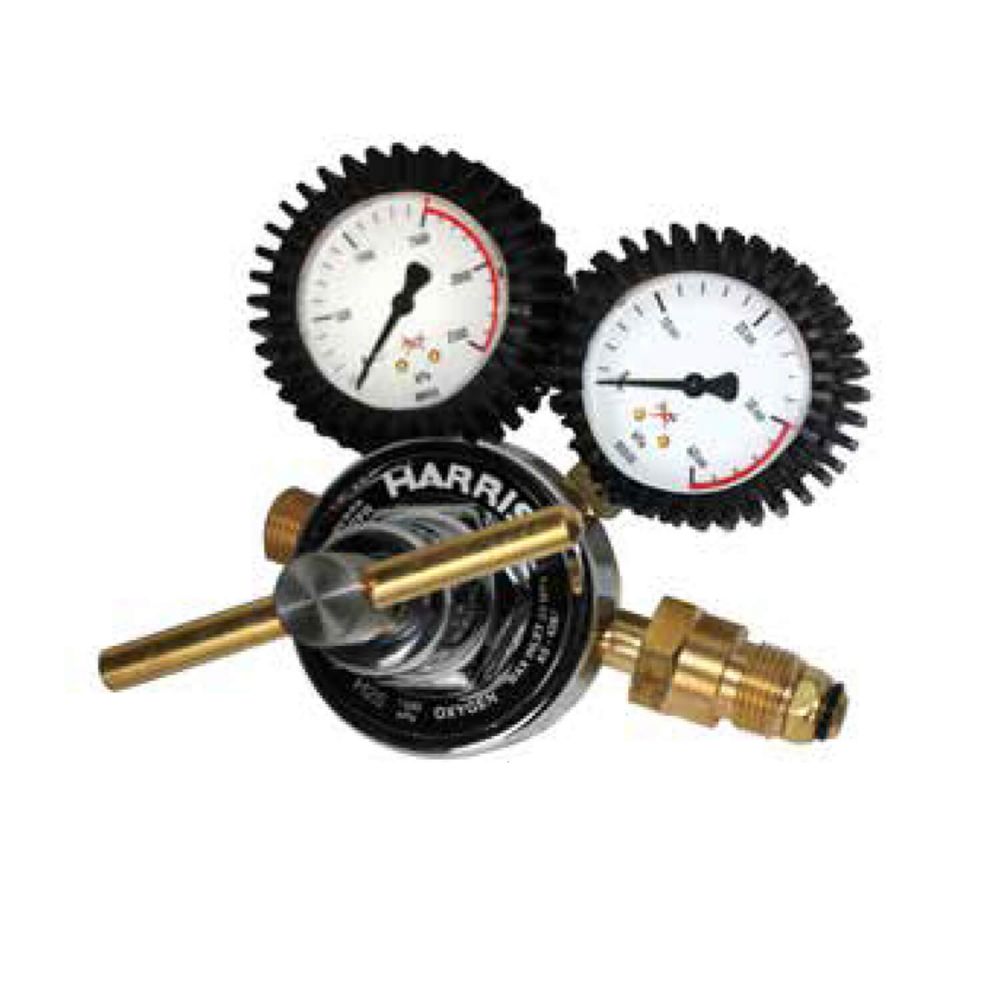

Model H25 High Flow reg, Stainless Dia, Side Inlet, 0-1500kpa, Hard Hats. Type 10.5. ½” NPT Female Body Port, (if required 1/2" BSPP Male RH outlet Nipple is code H2557 to be ordered separately).

SKU

H2515B-OXY

Product Details

Spare Parts

Available

Gas type

Oxygen

Maximum Pressure Kpa

1500

Flowrate M3 per hour

208

Inlet fitting type

Entry

Side

Inlet pressure Kpa

30000

Outlet Pressure Kpa

1500

Safety Standards

Made in Europe and complies with AS4267 Standards

Warranty

7 Year Raw Material 1 Year moving Parts

Product Description

Model H25 Series Regulators, For Heavy Duty applications,

Features and Benefits

Model H25 Series Regulators, specifically designed for high flow applications feeding industrial gas pipelines where a variety of pressures are required even when cylinder pressure is low, fitted with 1/2" outlet for high flow, flow rates up to 700M3/H

Comes With

1 x Harris H25 regulator
