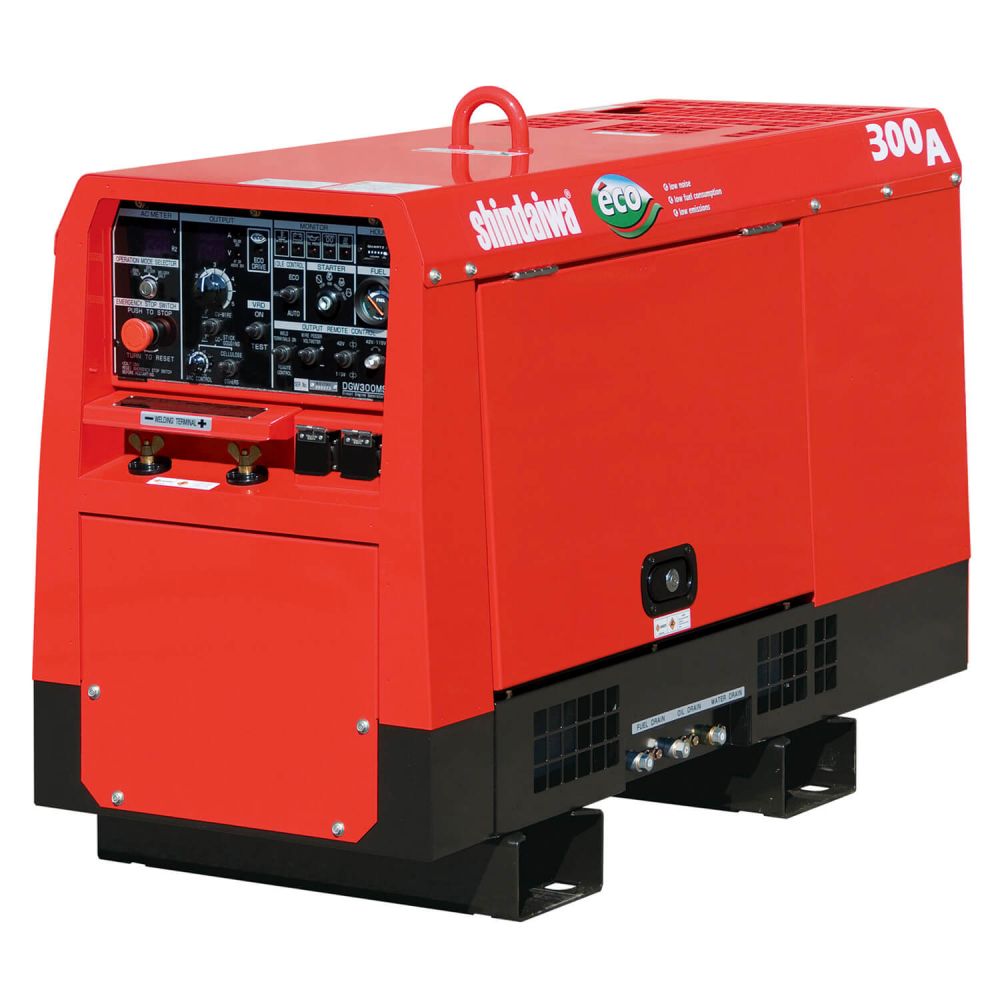

Shindaiwa DGW300

SKU

DGW300MS/ANZ

Quantity:

Shindaiwa mobile diesel welders are 100% Japanese designed and built using the highest grade components to not only survive the Australian conditions but to perform in them. Shindaiwa Machines are all super silenced and environmentally friendly through fewer emissions and excellent fuel economy. suitable for 2.0mm to 6.0mm electrodes

Product Details

Weight

370.00 kg

Weight Includes

Machine

Three Phase

✓

MIG Welding Current Range

30 - 300 Amps

MMA Welding Duty Cycle Single Phase

300 Amps @ 80%

MMA Welding Duty Cycle Three Phase

30%

MMA Welding Duty Cycle Three Phase Dual Mode

300 Amps

MIG Welding Duty Cycle

only applicable with suitcase feeder%

Steel & Stainless Wire Size

only applicable with suitcase feeder - only applicable with suitcase feeder mm

Aluminium Wire Size

only applicable with suitcase feeder - only applicable with suitcase feeder mm

Dimension

1400 x 850 x 600 mm

Product Description

The Shindaiwa has 280 Amps of welding power, stick or wire feeder capability on both A and B welding side. Pre-Dial Voltage or amperage, dual remote controls and 8kVA of single Phase auxiliary power. All this is packaged into a lightweight super silenced enclosure made to meet Australian mine site standards from the factory. The perfect welder for remote sites.

Features and Benefits

Super Silenced enclosure producing 57dba @ 50Hz operation
2 x 15 Amp Single Phase / 240V /50Hz Weatherproof IP66 outlets
Digital - Volts / Amps / Hz display
Anologue Fuel gauge and warning Lamp Indication
1x 9 Pin Remote Control Input
14 Pin Input for Wire Feeder Capability
Water Proof Powder Coated 2mm Steel Enclosure with nickel plated external hardware
One side service door with external water and oil drain plugs

Comes With

shindaiwa DGW300 engine driven welder only
