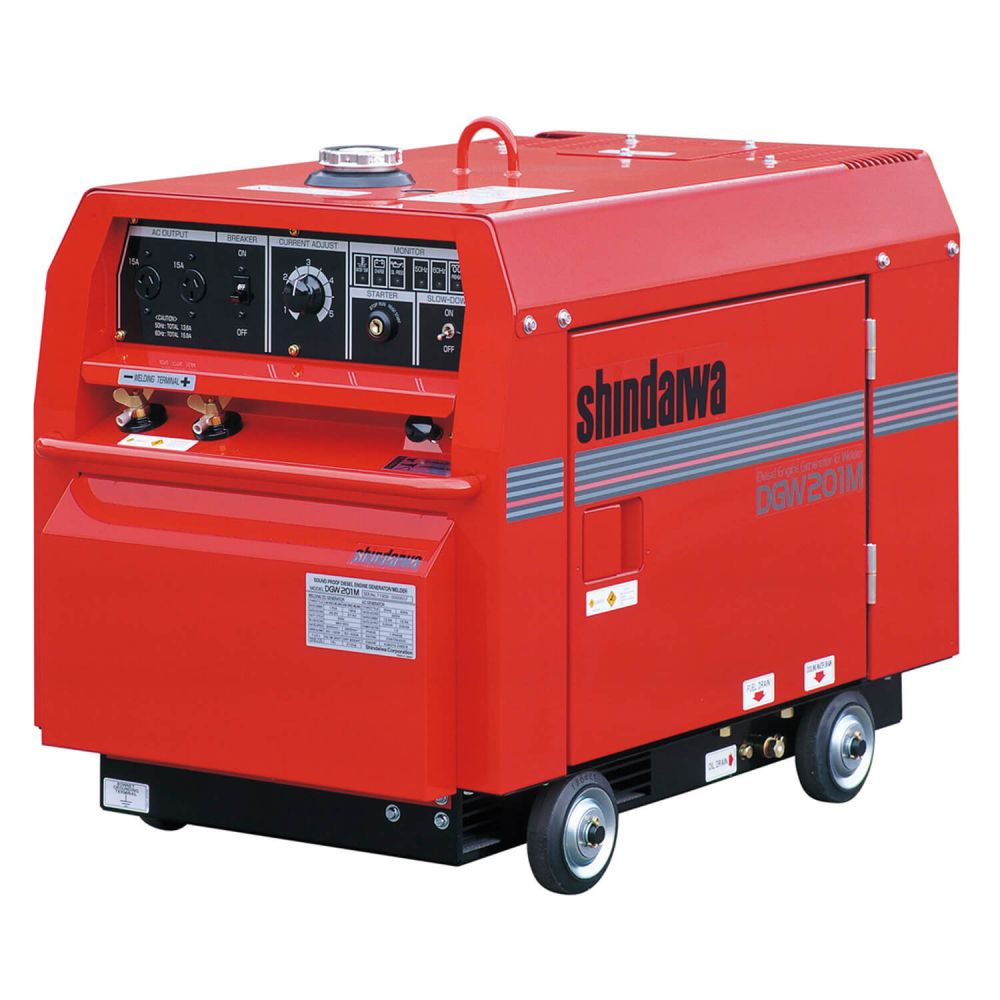

Shindaiwa DGW201

SKU

DGW201M/ANZ

Quantity:

Shindaiwa mobile diesel diesel welders are 100% Japanese designed and built using the highest grade components to not only survive the Australian conditions but to perform in them. Shindaiwa Machines are all super silenced and environmentally friendly through fewer emissions and excellent fuel economy. Suitable for up to 4.0mm electrodes

Product Details

Weight

212.00 kg

Weight Includes

Machine

Single Phase

✓

MMA Welding Current Range

50 Amps - 200 Amps

MMA Welding Duty Cycle Single Phase

200 Amps @ 50%

MIG Welding Duty Cycle

only applicable with suitcase feeder %

Steel & Stainless Wire Size

only applicable with suitcase feeder 0.6 - 1.0 mm

Aluminium Wire Size

only applicable with suitcase feeder 0.9 - 1.2 mm

Dimension

998 x 773 x 603 mm

Product Description

The Shindaiwa DGW201 brings Industrial quality to the compact market boasting a two cylinder diesel engine, 200 Amps of welding power and 4.8kVA of Auxiliary power. Exceptional welding performance is all packaged in a super silenced lightweight design. Has the option of a ute mounting frame for site vehicles and wheels for workshop work.

Features and Benefits

Super Silenced enclosure producing 57dba @ 50Hz operation
2 x 15 Amp Single Phase / 240V /50Hz Weatherproof IP66 outlets
Digital - Volts / Amps / Hz display
Anologue Fuel gauge and warning Lamp Indication
1x 9 Pin Remote Control Input
14 Pin Input for Wire Feeder Capability
Water Proof Powder Coated 2mm Steel Enclosure with nickel plated external hardware
One side service door with external water and oil drain plugs

Comes With

Shindaiwa DGW201 engine driven welder only
